OVERVIEW
NO INTEREST FOR 24 MONTHS ON ALL LIBERATORS

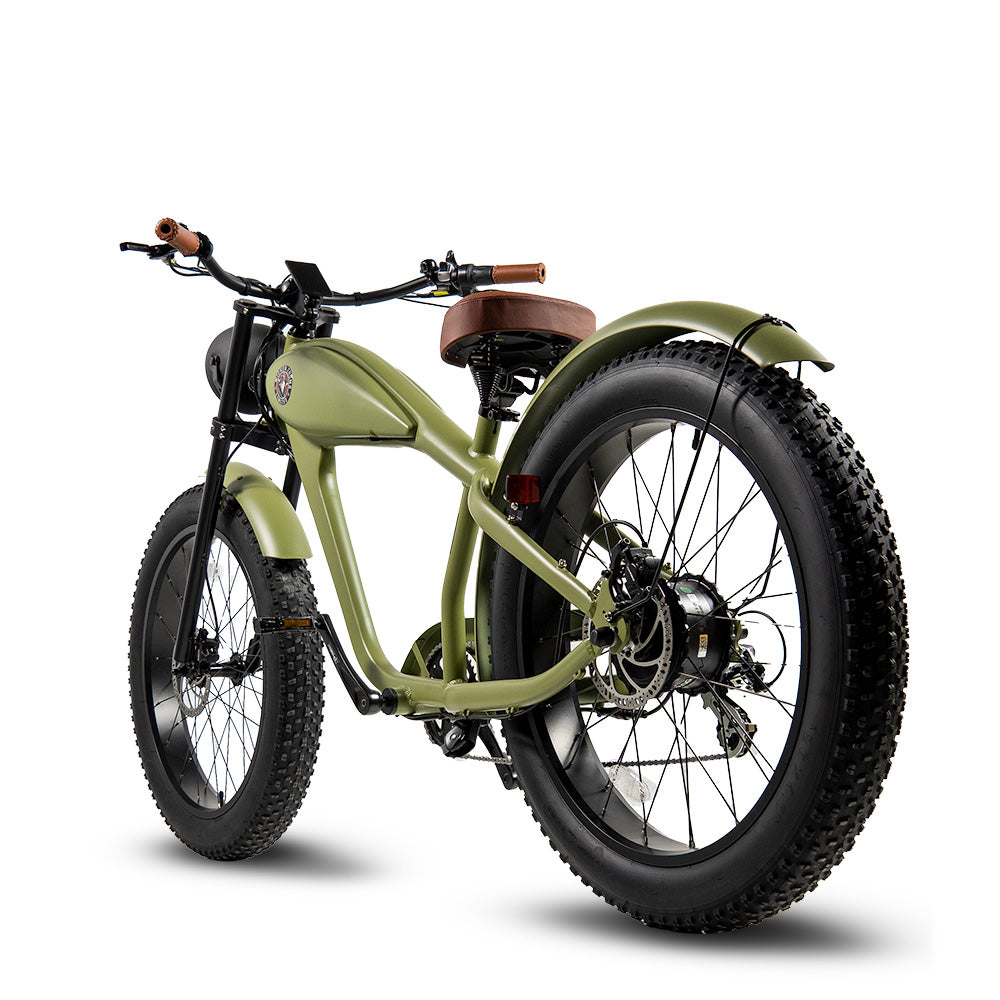

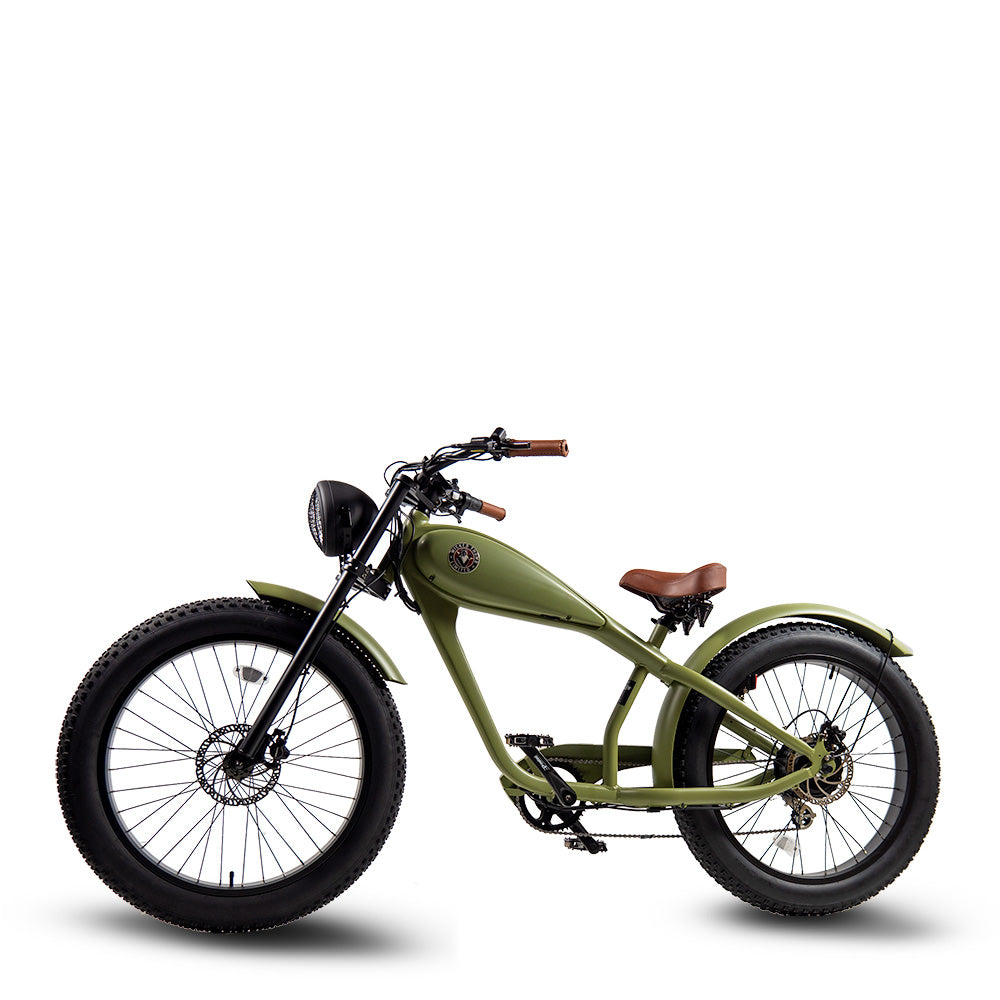

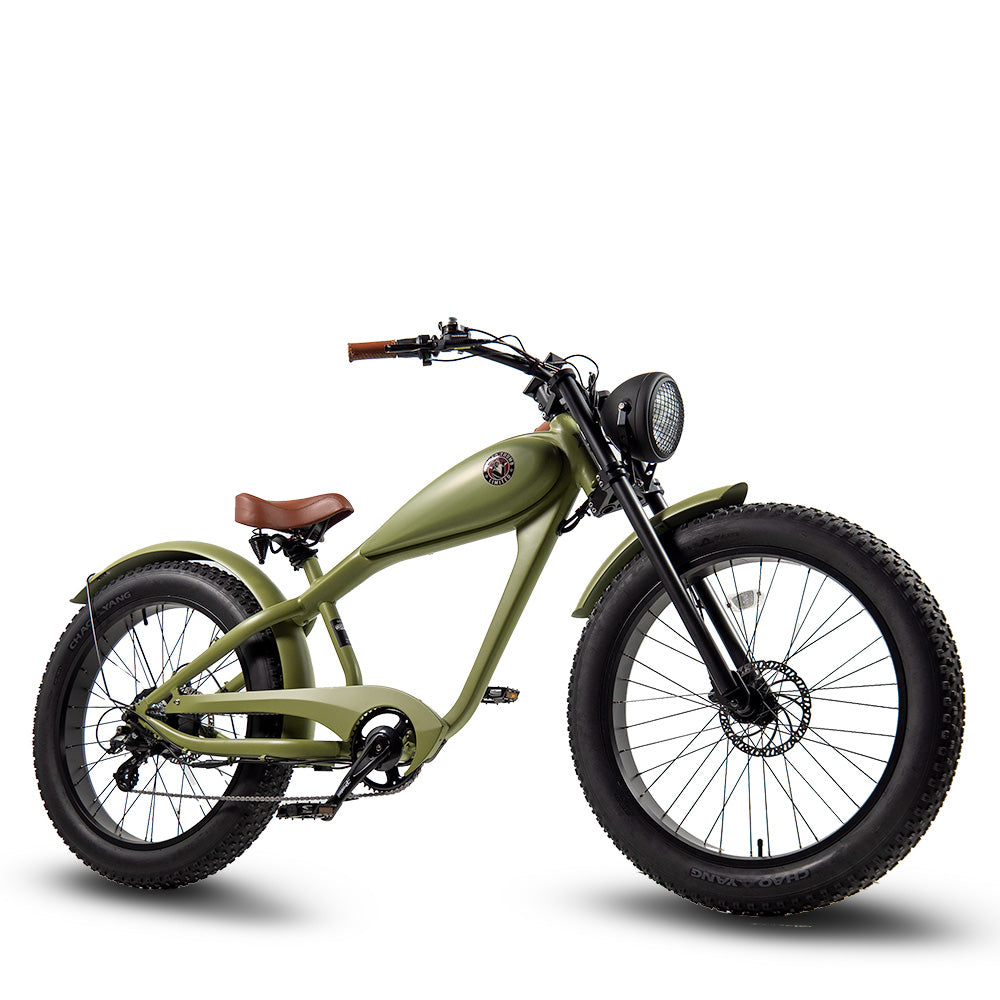

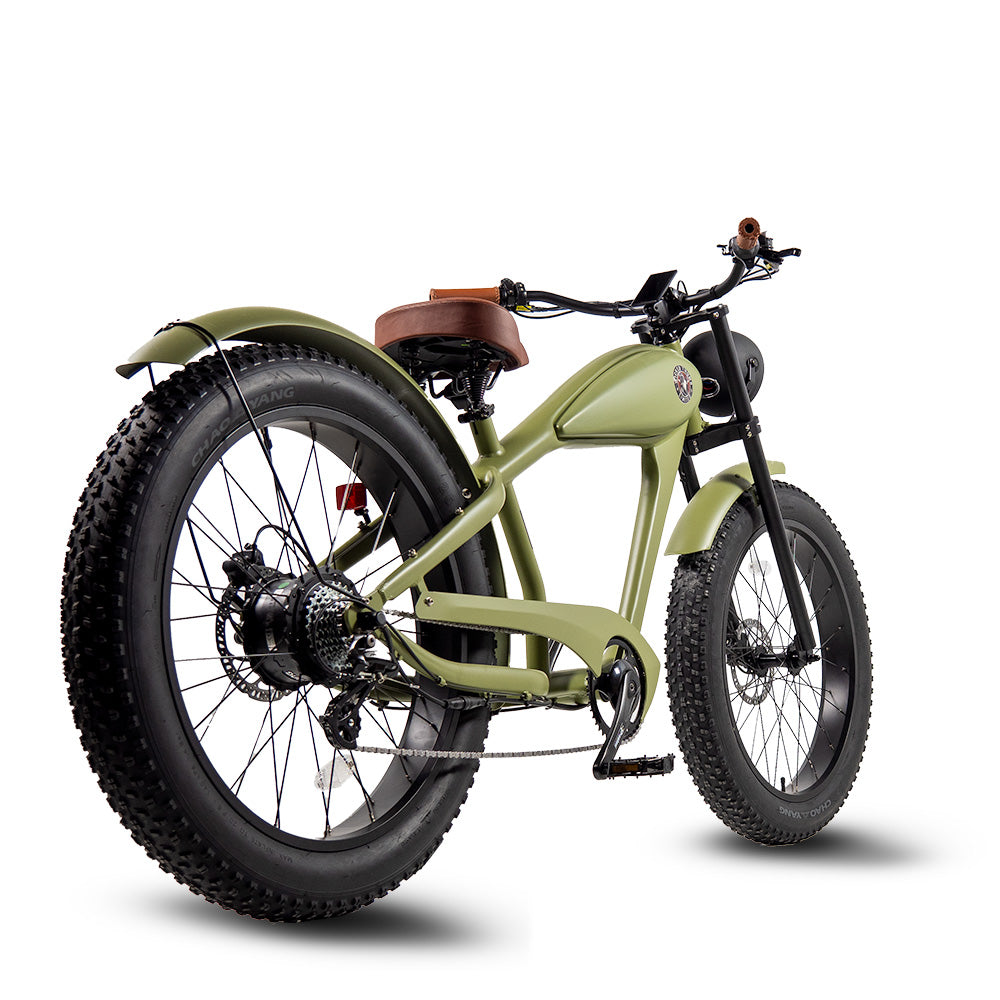

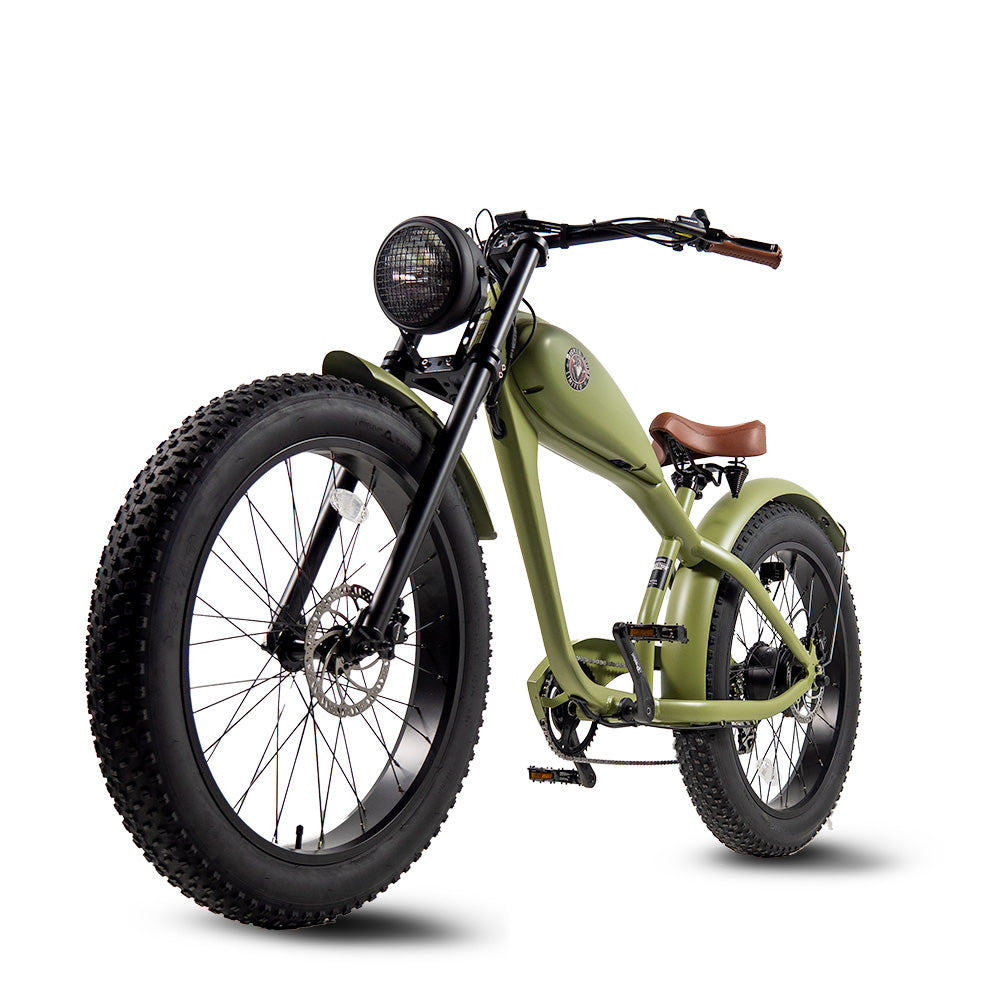

This Last Remaining Liberator Has a Custom Painted Tank. It is Not Plain Green. See Last Photo.

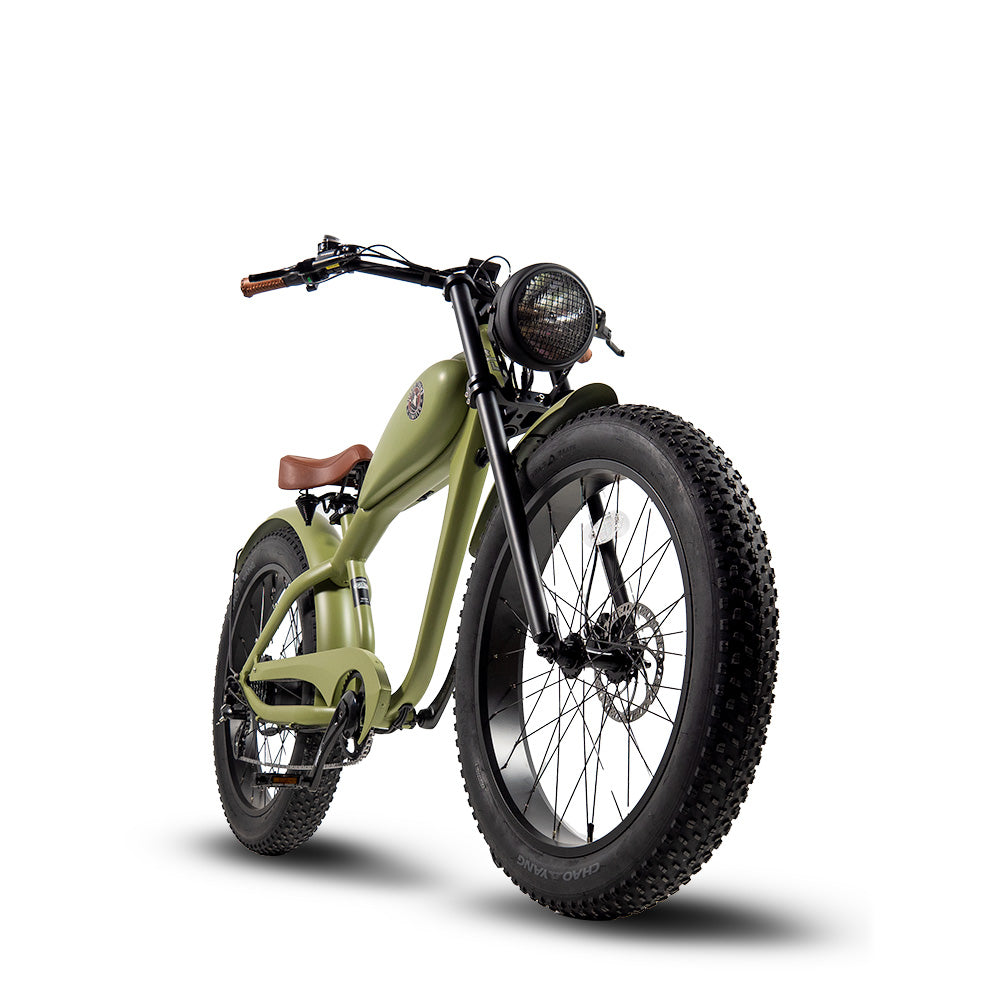

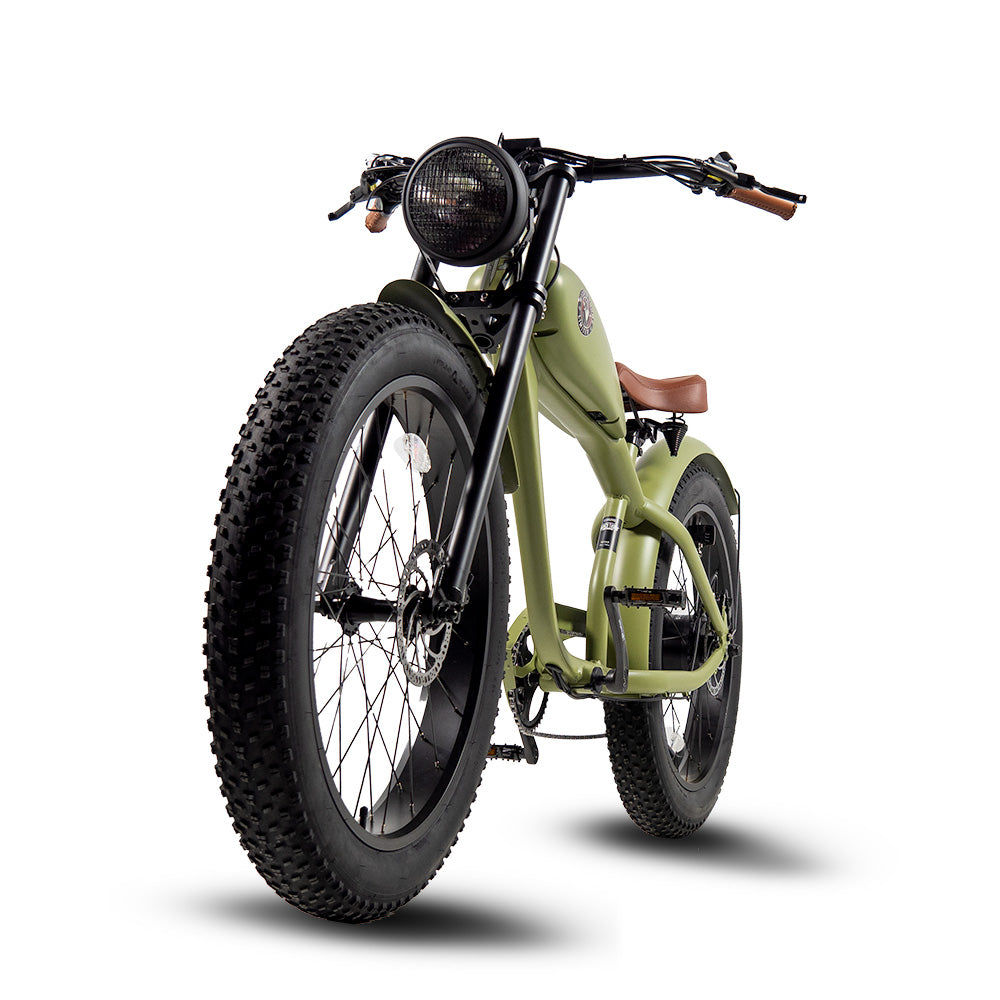

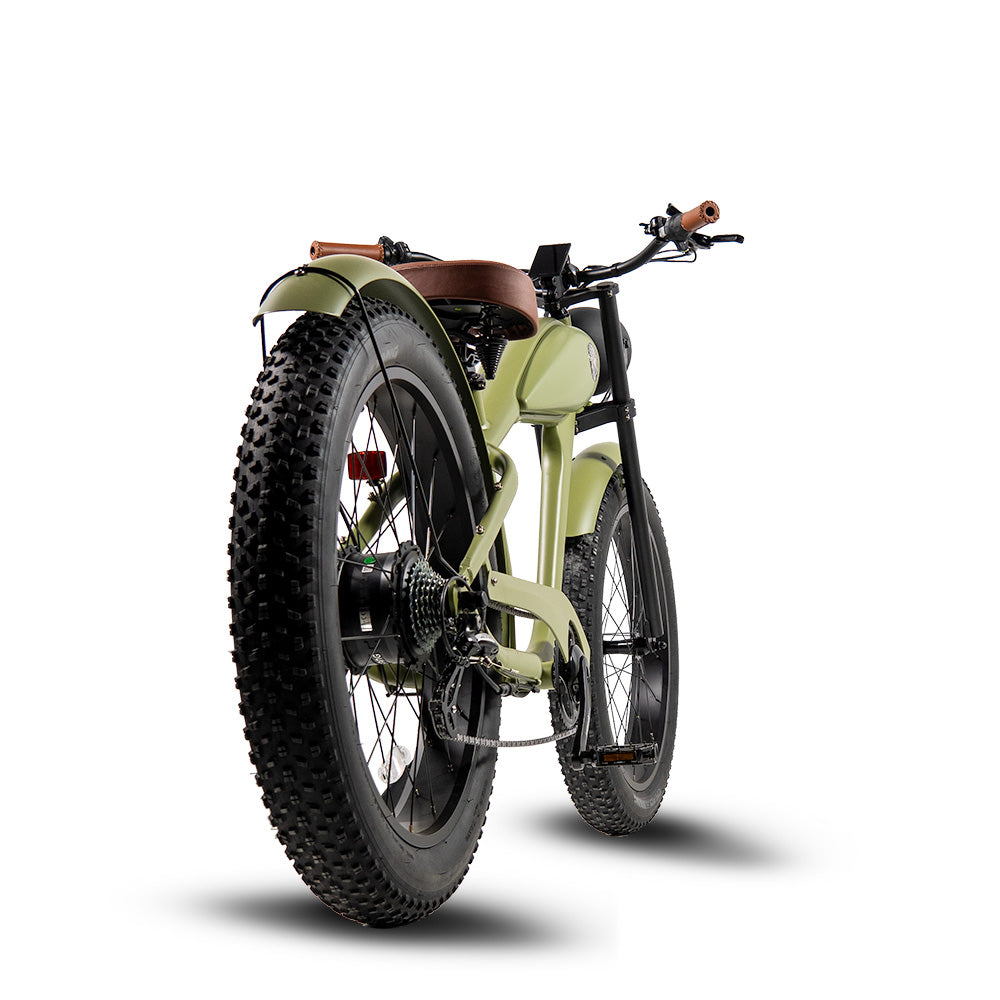

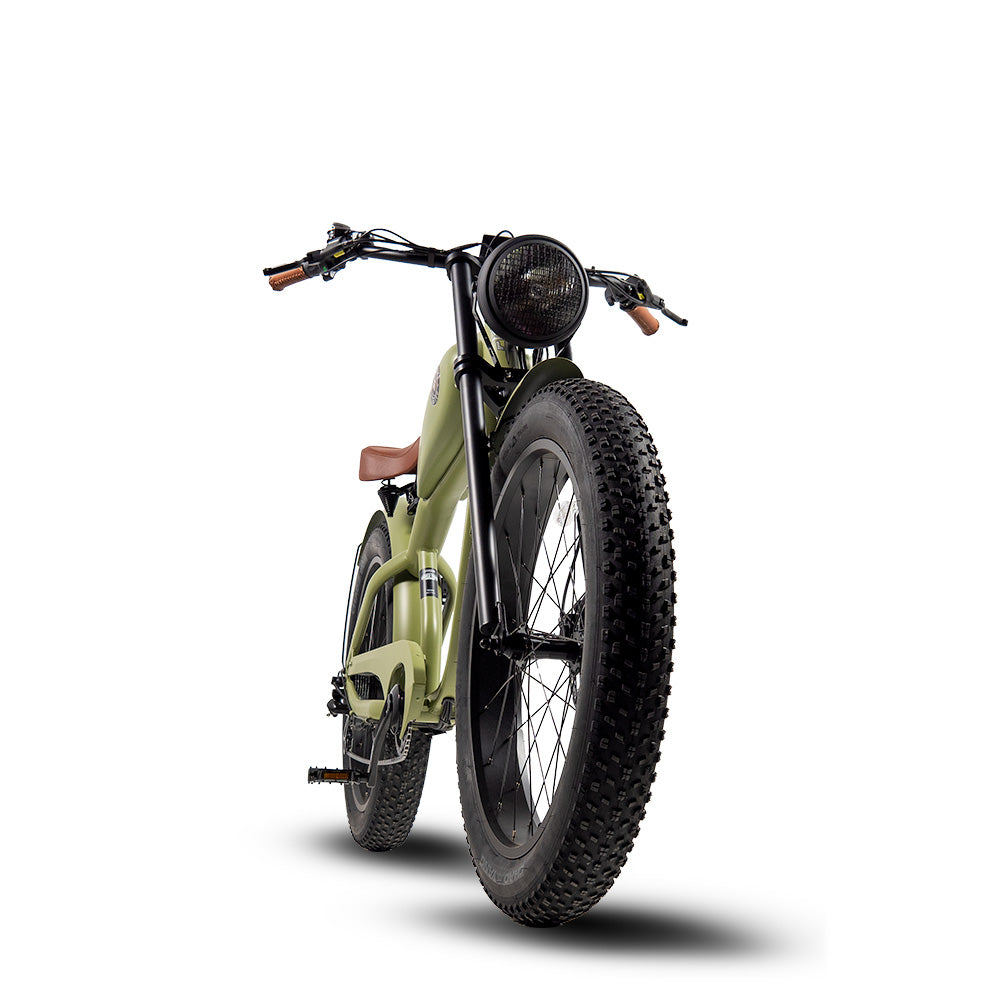

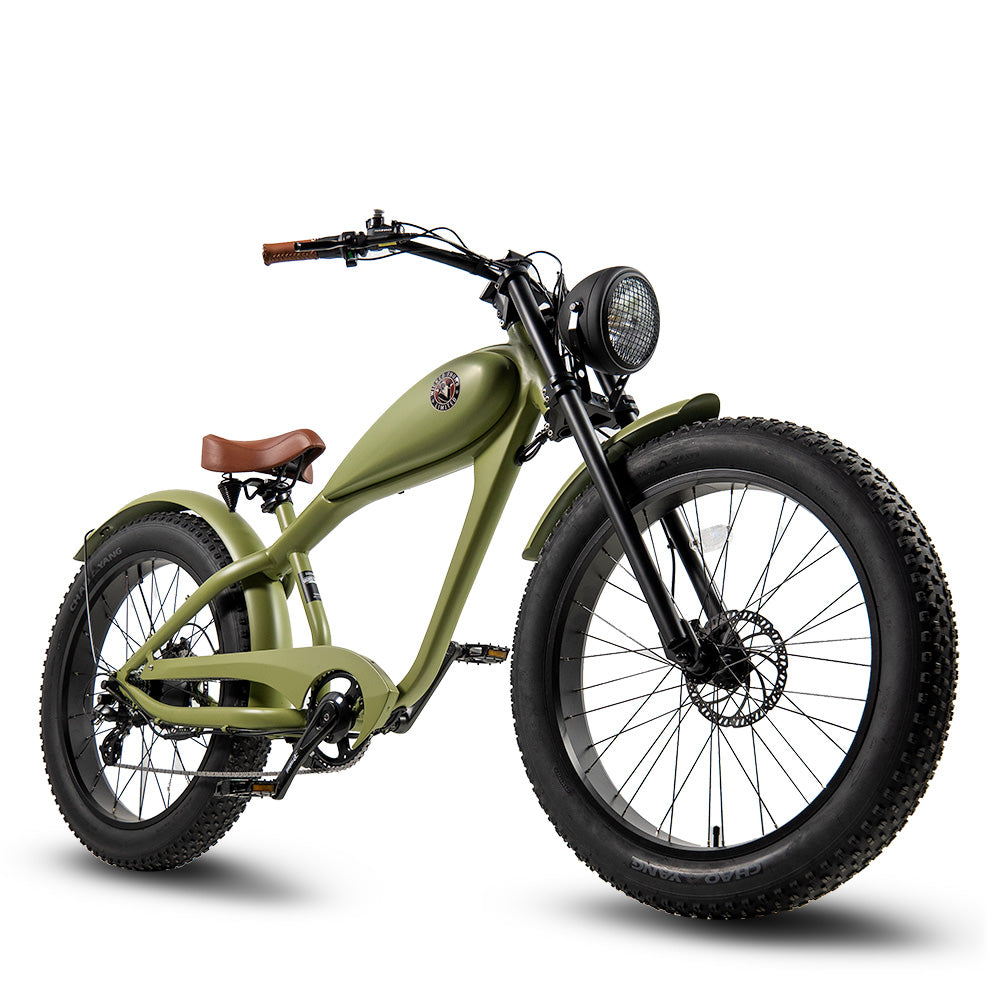

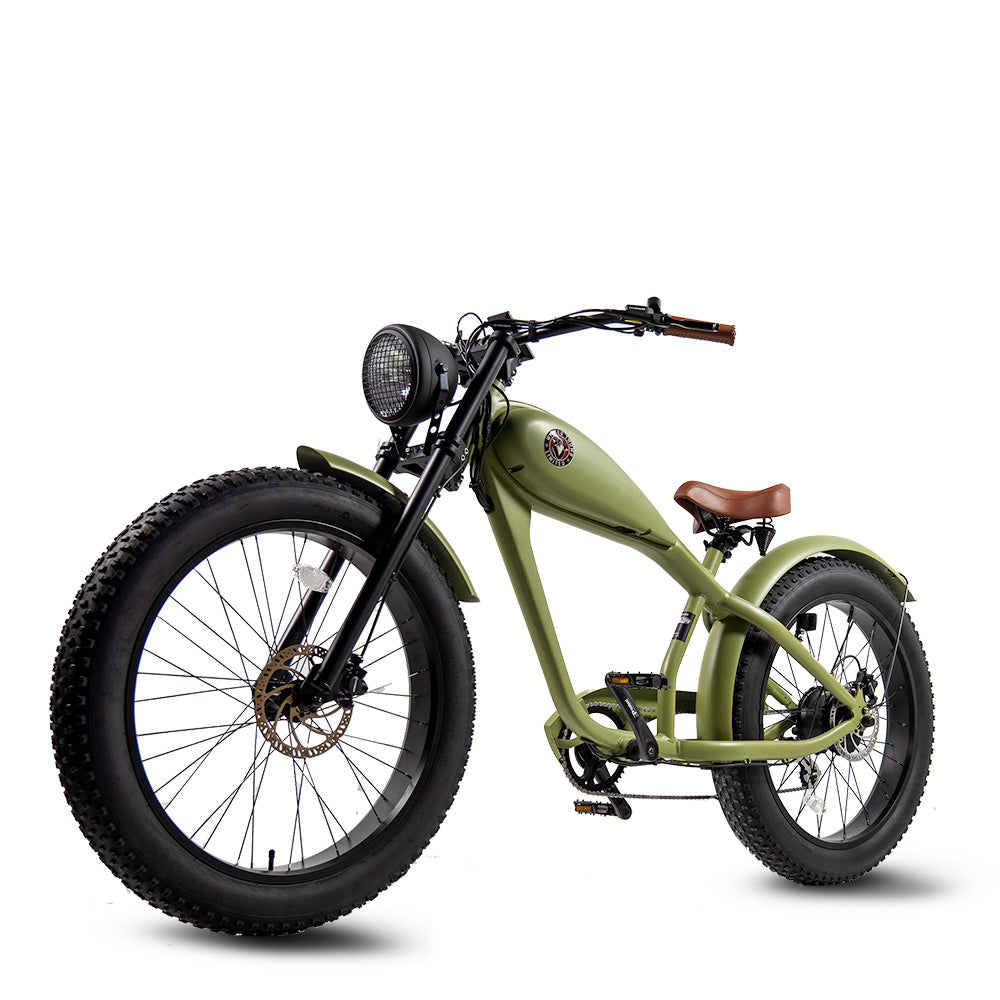

The 2023 Liberator Highlights Include:
- Matte Olive Green Paint
- 750 Watt Bafang Rear Hub Motor
- 48V 840 Watt Hour Samsung Lithium Ion Battery
- 7" Premium LED Black Headlight with Rock Guard
- 28 MPH Top Speed Throttle or Pedal Assist
- 35-45+ Mile Battery Range
- Black Nobby SandTires
- Color Matched Long/Short Fender Set
We started with the Desert Destroyer in 2021. We followed that up with Nevada Gray. The Liberator edition is the latest Armed Forces tribute bike. This one is dedicated to the US Army, the motor company and the role 2 wheels played during WWII. This Street-Legal Ebike with Vintage American V-Twin Motorcycle Inspiration does not require a license, registration or insurance to ride. With it's trademark aluminum frame and battery 'tank', the Liberator quickly reaches a top speed of 28mph via pedal assist and/or throttle.
FEATURES
| 28 MPH CLASS 3 ELECTRO CYCLE | 35-45+ MILE RANGE |
| 750W BRUSHLESS REAR HUB MOTOR | 48V, 840 WATT-HR BATTERY |
| 300 LB PAYLOAD | FRONT AND REAR HYDRAULIC BRAKES |
| MATTE OLIVE DRAB CUSTOM PAINT | 6061 HYDROFORMED ALUMINUM ALLOY FRAME |
| 26 X 4" FAT STREET TIRES | 7 SPEED SHIMANO SHIFTER |
|
FULL COLOR LED DISPLAY |

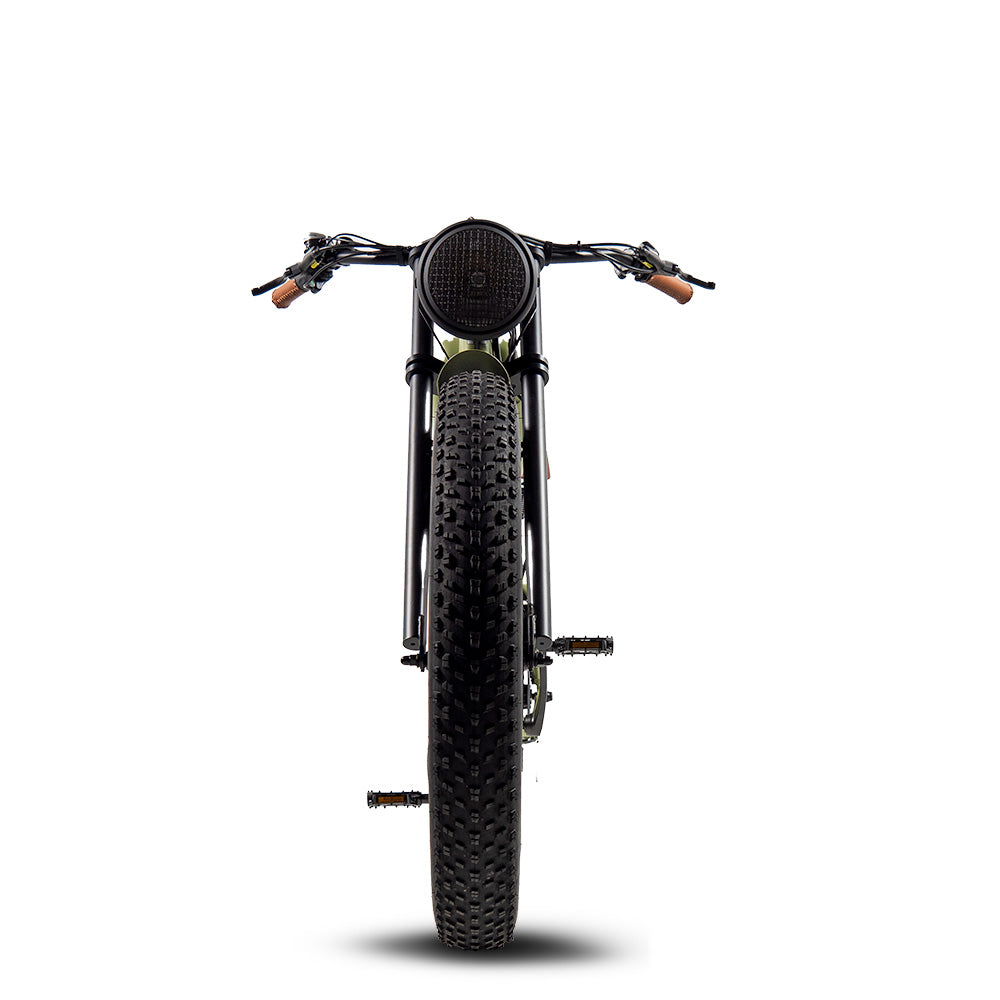

7" LED HEADLAMP WITH HI/LO BEAM |
|
FRONT AND REAR FENDERS |
34MM MOTORCYCLE STYLE FORKS |
FULL SPECIFICATIONS
MEASUREMENTS
- TOTAL WEIGHT: 78 lbs
- BATTERY WEIGHT: 8.2lbs
- MOTOR WEIGHT: 9.5 lbs (4.3 kg)
- FRAME SIZE: 19.75 in (50.16 cm)
- STANCE: 1.75” Seat Tube, 25.25” Reach, 27.25” Stand Over Height, 34” Minimum Saddle Height, 30.25” Width, 83” Length, 52" Wheelbase
ELECTRONICS
-
BATTERY: 48V, 17.5 Ah (840 Wh) with Lithium NCA 18650 Samsung 35E cells, rated for 800 charge cycles
-
HUB MOTOR: 750W Bafang brushless geared rear hub motor - 80 Nm torque, 5:1 planetary gear reduction
-
CONTROLLER: 48V, 25amp
-
PEDAL ASSIST: Configurable 5-9 level pedal assist with sealed 12 magnet cadence sensor
-
DISPLAY: C900E-USB 3.8” color LCD Display w/ USB Port
- CHARGER: 48V, 3 Amp WT intellicharger, 110v
- LIGHTS:
- Front: 6.25” LED headlight - 48V Hi/Lo Beam Function 400 lumens w/optional lens guard
- Rear: Reflector
- RANGE: 35-45+ miles per charge (estimate)* Read more
- THROTTLE: Right side twist throttle
- WIRING: Internally run, water resistant connectors and wiring harness
BIKE COMPONENTS
- BATTERY MOUNT: Concealed top tube mount
- BRAKE CALIPERS: Tektro HD-E350 Hydraulic Disc
- BRAKE LEVERS: Aluminum alloy 4 finger grip levers with motor cutoff switch
- BRAKE PAD MATERIAL: Metallic
- BRAKE ROTORS: Tektro 180 mm front and rear
- CHAIN: KMC Z7
- CRANK SET: 44T, 170 mm ProWheel Pioneer forged alloy, dual-sided aluminum bashguard
- DERAILLEUR: 7-speed Shimano Altus
- FRAME: 6061 Aircraft Aluminum Fat Hydroformed Tube, with CNC machined top tube
- FREEWHEEL: SunRace 13-28T stainless steel, 7 speed
- FRONT END: Rigid Steel, Triple-Tree, Stretched Style, 135mm Hub Spacing, 10mm Threaded Axle with Nuts (OPTIONAL SUSPENSION FORKS)
- GRIPS: Flat, Padded, Faux Leather with Stitching - Black or Brown
- HANDLEBAR: Alloy flat, 25.4mm, 28.5” wide; optional 13.5" x 32" wide ape hanger
- HEADSET: Threadless Internal Cups, Straight 1-1/8”
- KICKSTAND: Side-mounted, adjustable length
- PEDALS: VP-565 Alloy Platform, Black
- RIMS: Alloy, Double Wall, 26” X 80mm Outer Width, 36 Hole, Black
- SADDLE: CHIFA, Oversized Comfort, Faux Leather, Springs
- SEAT POST: Alloy, 30.4mm width, 300mm length
- SHIFTER DETAILS: Shimano SIS Index Trigger Thumb Shifter on Right, 7 speed
- SPOKES: Stainless Steel, 13 Gauge Front, 12 Gauge Rear, Black with Silver Nipples
- STEM: Double Crown Direct Mount, Alloy, Turn Stopper Pin
- TIRES: 26” x 4.0”, 5-20PSI, Black Sand or Street option
- TIRE TUBE: Schrader Valve
