Custom Shop BMX Moto Ebike

$5,995.00

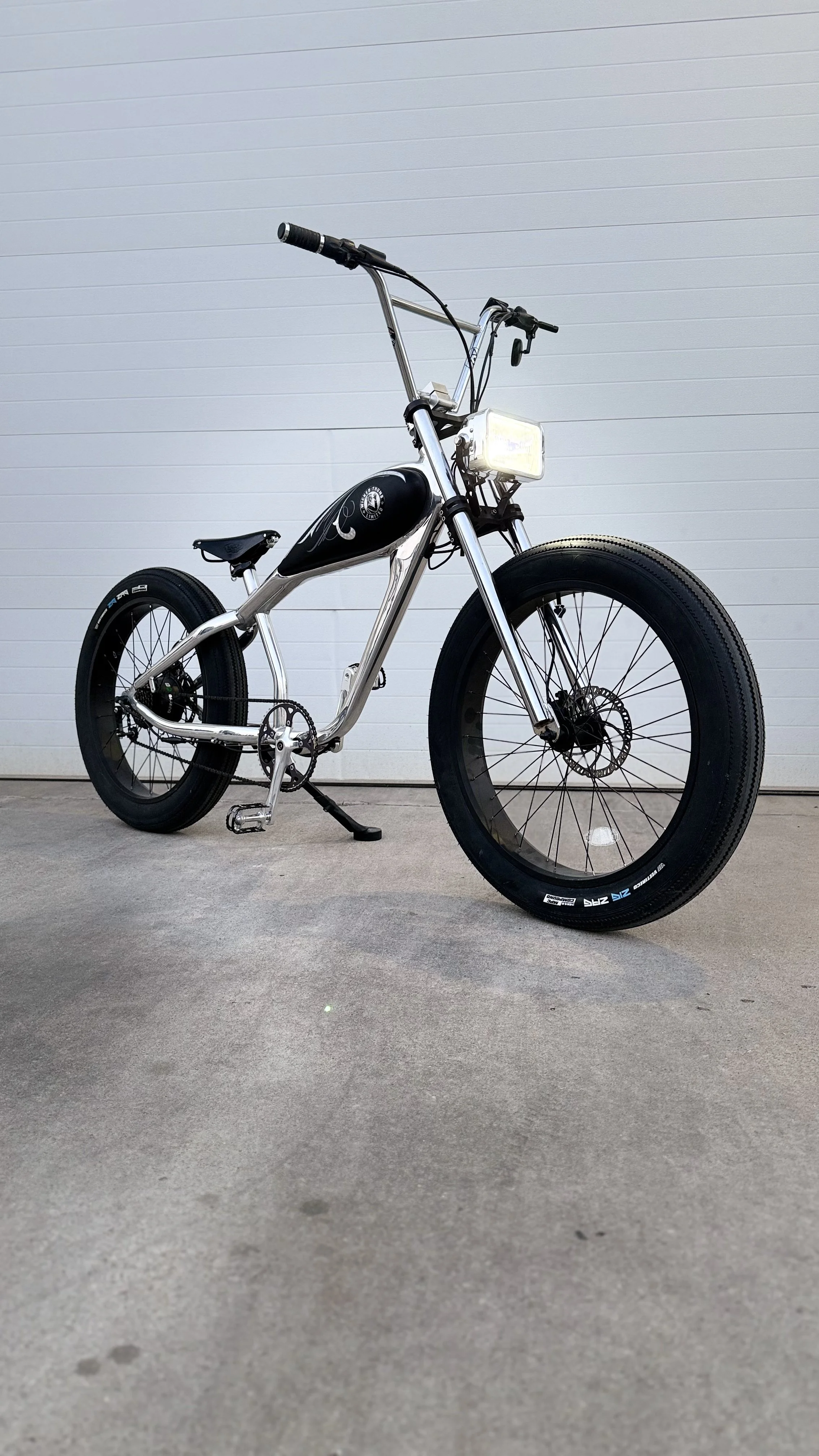

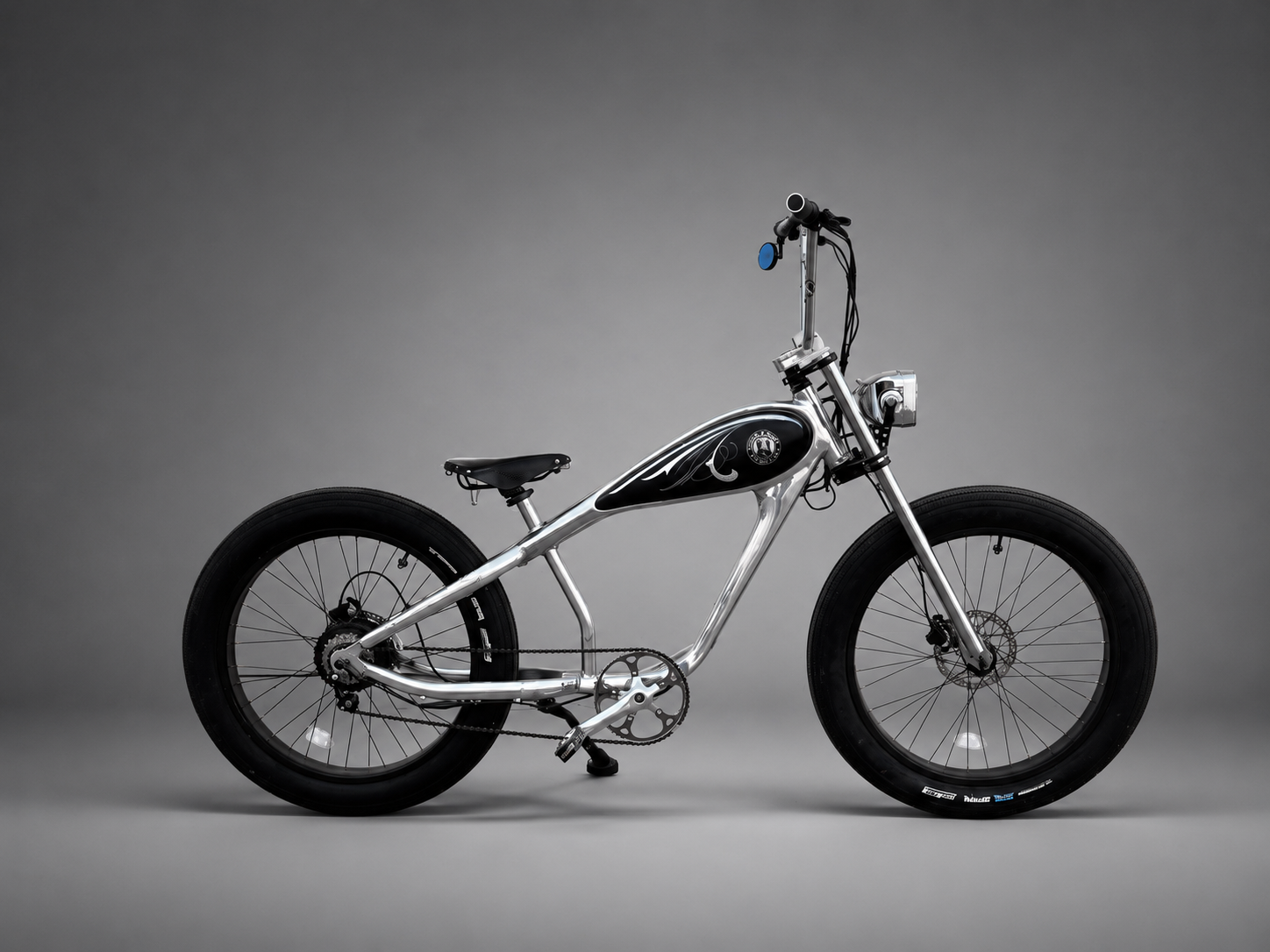

WICKED THUMB CUSTOM SHOP Polished BMX Moto Cruiser

It’s no secret Wicked Thumb roots are in motorcycles and BMX bikes. This BMX Moto art piece has been polished and chromed out like a vintage 80’s BMX collector. It’s been hand silver leafed by Jack Fleming. There will never be an identical one like it. Make it yours today.

  • 28MPH Class 3 Ebike

  • 35-45 Mile Average Range per Charge

  • 750W Bafang Hub Drive Motor

  • 48V 17.5ah Samsung Battery

  • Single speed conversion

  • Front and rear Tektro Hydraulic Brakes with 180mm rotors

  • Chrome 34mm Forks

  • Chromoly BMX Handlebars

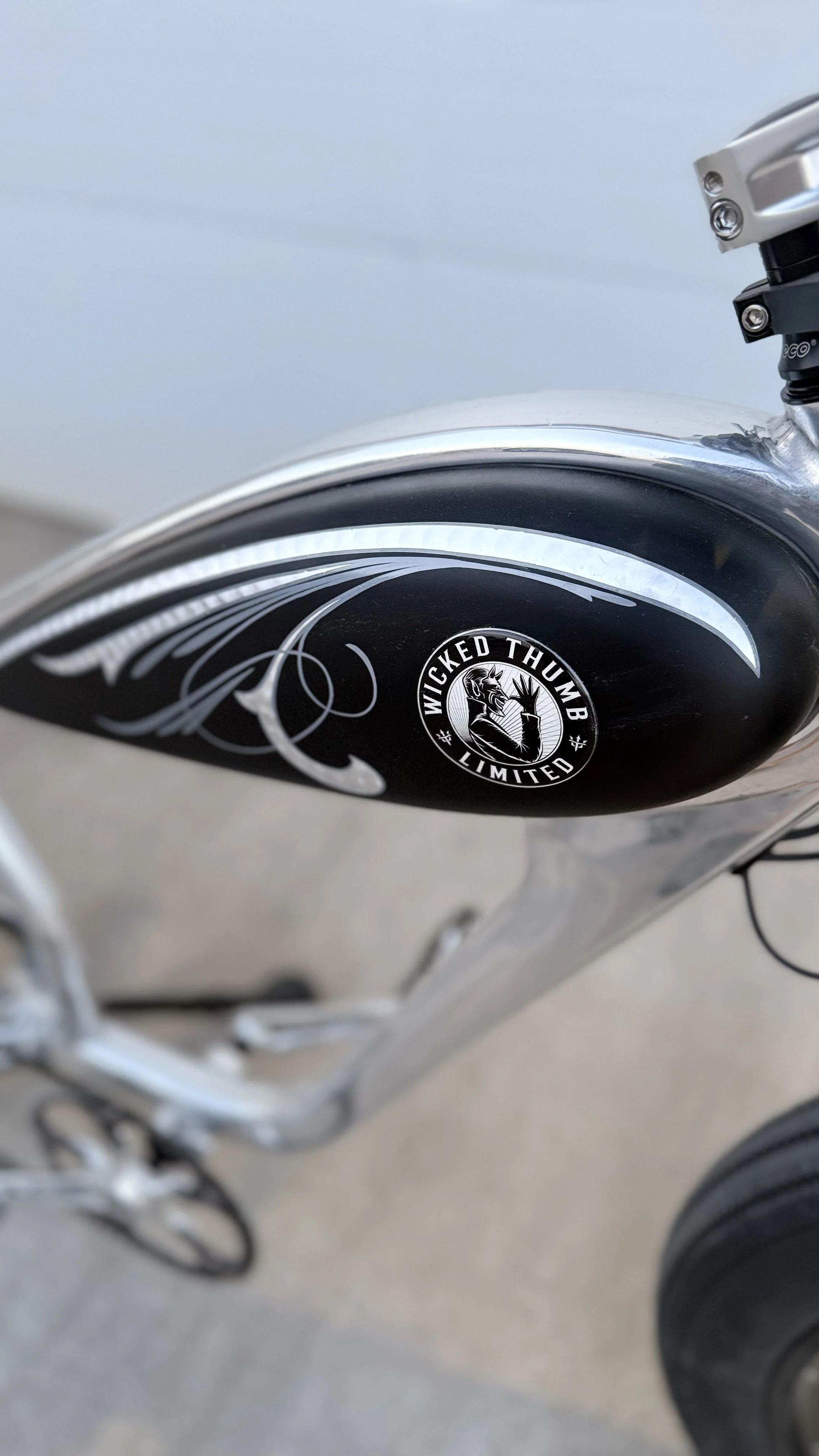

  • Hand Silver Leaf Tank

  • Brooks B17 Saddle

  • Leather and Alloy Grips

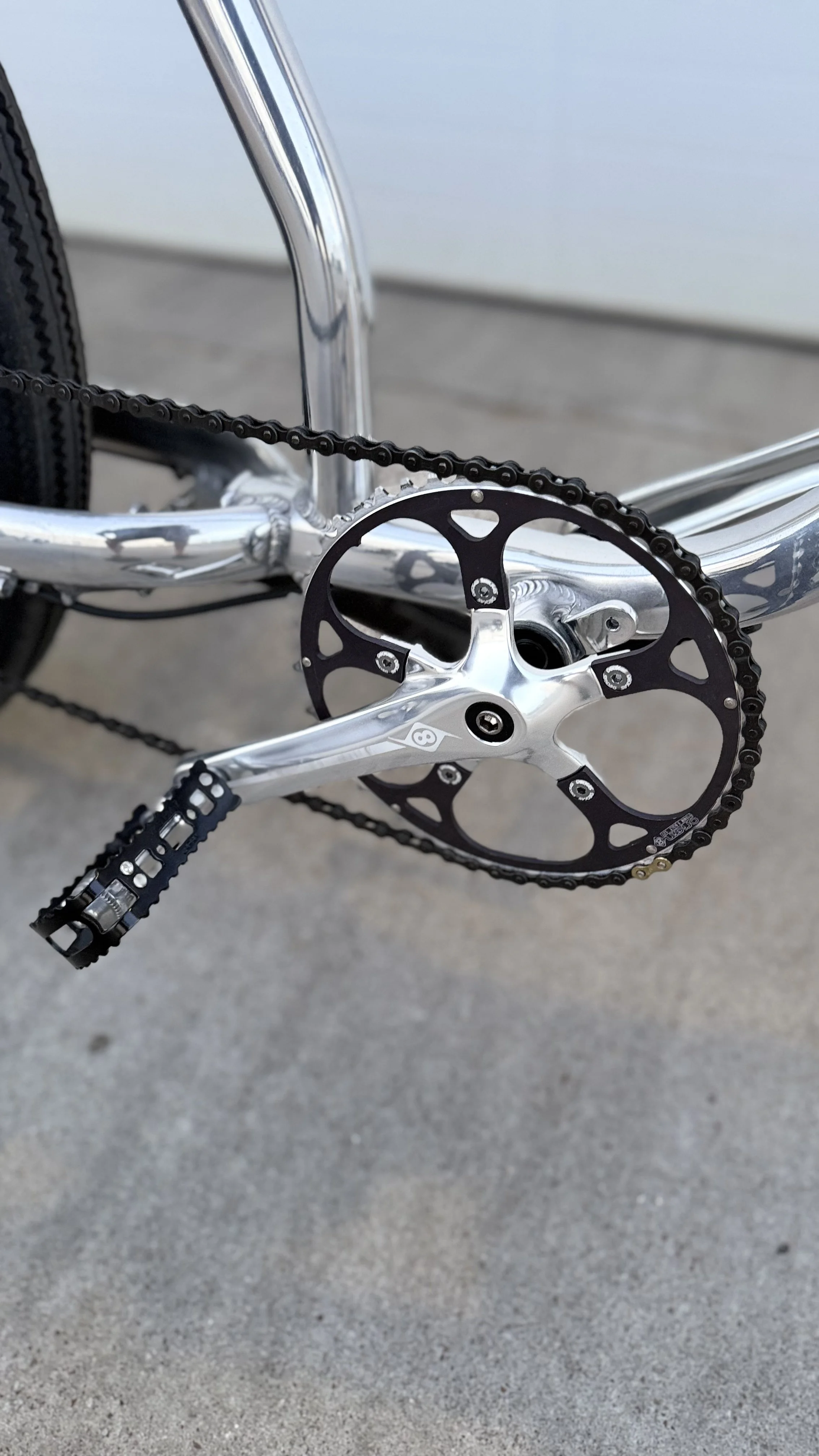

  • 52 Tooth 8-ball Cranks and chainring

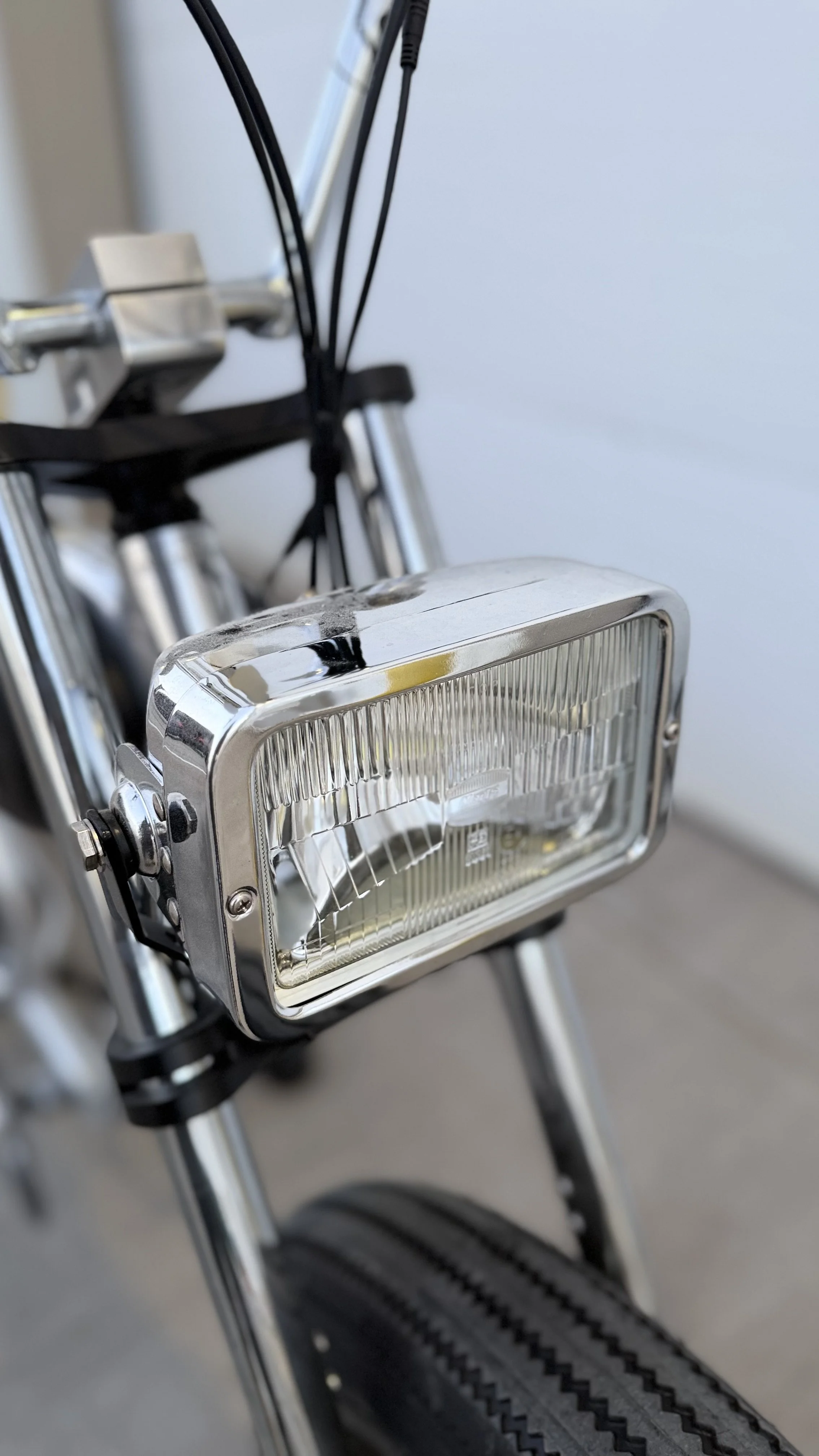

  • Chrome Vintage Motorcycle Headlight

  • 48V 3a charger

  • Vee Tire ZigZag 26×4 Tires

WICKED THUMB CUSTOM SHOP Polished BMX Moto Cruiser

It’s no secret Wicked Thumb roots are in motorcycles and BMX bikes. This BMX Moto art piece has been polished and chromed out like a vintage 80’s BMX collector. It’s been hand silver leafed by Jack Fleming. There will never be an identical one like it. Make it yours today.

  • 28MPH Class 3 Ebike

  • 35-45 Mile Average Range per Charge

  • 750W Bafang Hub Drive Motor

  • 48V 17.5ah Samsung Battery

  • Single speed conversion

  • Front and rear Tektro Hydraulic Brakes with 180mm rotors

  • Chrome 34mm Forks

  • Chromoly BMX Handlebars

  • Hand Silver Leaf Tank

  • Brooks B17 Saddle

  • Leather and Alloy Grips

  • 52 Tooth 8-ball Cranks and chainring

  • Chrome Vintage Motorcycle Headlight

  • 48V 3a charger

  • Vee Tire ZigZag 26×4 Tires

Smartphone Holder w/ mount
Smartphone Holder w/ mount
$69.00
BigAss Drink Holder Gen 2
BigAss Drink Holder Gen 2
$99.00
Fork Tool Bag
Fork Tool Bag
$39.00
GPS Tracker with 1 yr 4 Service
GPS Tracker with 1 yr 4 Service
$109.00

  • Top Speed > Class 3 28+MPH

    Range > 35-45 miles*
    *30+ miles of range at 25mph Throttle + Pedal Assist Operation

    Charge Time > 6 hours * 3A Charger Included

    Battery > 840Wh (48V 17.5Ah) UL2271 / EN15194

    Motor > 750w nominal / 1500 w peak

    Throttle > Twist Throttle

    Gearing & Rear Derailleur > 7 Speed

  • TOTAL WEIGHT >82 lbs

    BATTERY WEIGHT> 10 lbs

    MOTOR WEIGHT > 11.5 lbs

    FRAME SIZE > 19.75 in

    STANCE > 1.75” Seat Tube, 25.25” Reach, 27.25” Stand Over Height, 34” Minimum Saddle Height, 30.25” Width, 83” Length

  • BATTERY > 48V, 17.5 Ah (840Wh) with Lithium NCA 18500 Samsung 35E cells, rated for 800 charge cycles

    HUB MOTOR > 750W  brushless geared rear hub motor - 120 Nm torque, 5:1 planetary gear reduction

    CONTROLLER > 48V, 25amp

    PEDAL ASSIST > Configurable 5-9 level pedal assist with sealed 12 magnet cadence sensor

    DISPLAY > C900E-USB 3.8” color LCD Display w/ USB Port

    CHARGER > 48V, 3 Amp WT intellicharger, 110v

    LIGHTS:

    Front > 4.5” LED headlight - 48V Hi/Lo Beam Function 800/1200 lumens

    Rear > none

    RANGE > 35-45 miles per charge (estimate)* Read more

    THROTTLE > Right side twist throttle

    WIRING > Internally run, water resistant connectors and wiring harness

  • BATTERY MOUNT > Concealed top tube mount, Bolt In.

    BRAKE CALIPERS > Tektro HD-E350 Hydraulic Disc

    BRAKE LEVERS > Aluminum alloy 3 finger blade levers with motor cutoff switch

    BRAKE PAD MATERIAL > Semi-Metallic

    BRAKE ROTORS > Tektro 180 mm front and rear

    CHAIN > KMC Z7

    CRANK SET > 44T, 170 mm 8 ball alloy

    DERAILLEUR > 7-speed Shimano Altus

    FRAME > 6061 Aircraft Aluminum Fat Hydroformed Tube, with CNC machined top tube, Forged Dropouts

    FREEWHEEL > SunRace 13-28T, 7 speed

    FRONT END > Chromoly Springer, 135mm Hub Spacing, 10mm Threaded Axle with Nuts

    GRIPS > Leather ring grips with Silver Alloy Locking Rings

    HANDLEBARS > 5.5" x 32" wide alloy beach bars

    HEADSET > Threadless Internal Cups, Straight 1-1/8”

    KICKSTAND > Side-mounted, adjustable length

    PEDALS > Bear claw, Black

    RIMS: > Alloy, Double Wall, 26” X 80mm Outer Width, 36 Hole, Black

    SADDLE > Brooks B135, leather surface, triple rail stainless steel Springs

    SEAT POST > Alloy, 30.4mm width, 300mm length

    SHIFTER DETAILS > Shimano SIS Index Trigger Thumb Shifter on Right, 7 speed

    SPOKES > Stainless Steel, 12 Gauge Black with Silver Nipples

    STEM > Black, Black Cap, Alloy 4 Bolt Pattern Front

    TIRES > 26” x 4.0”, 5-20PSI, Black VeeTire ZigZag MPC

    TIRE TUBE > Schrader Valve
