Rat Chopper ST 52V Ebike Custom Shop

$4,495.00

SHIPS IN 10-14 DAYS

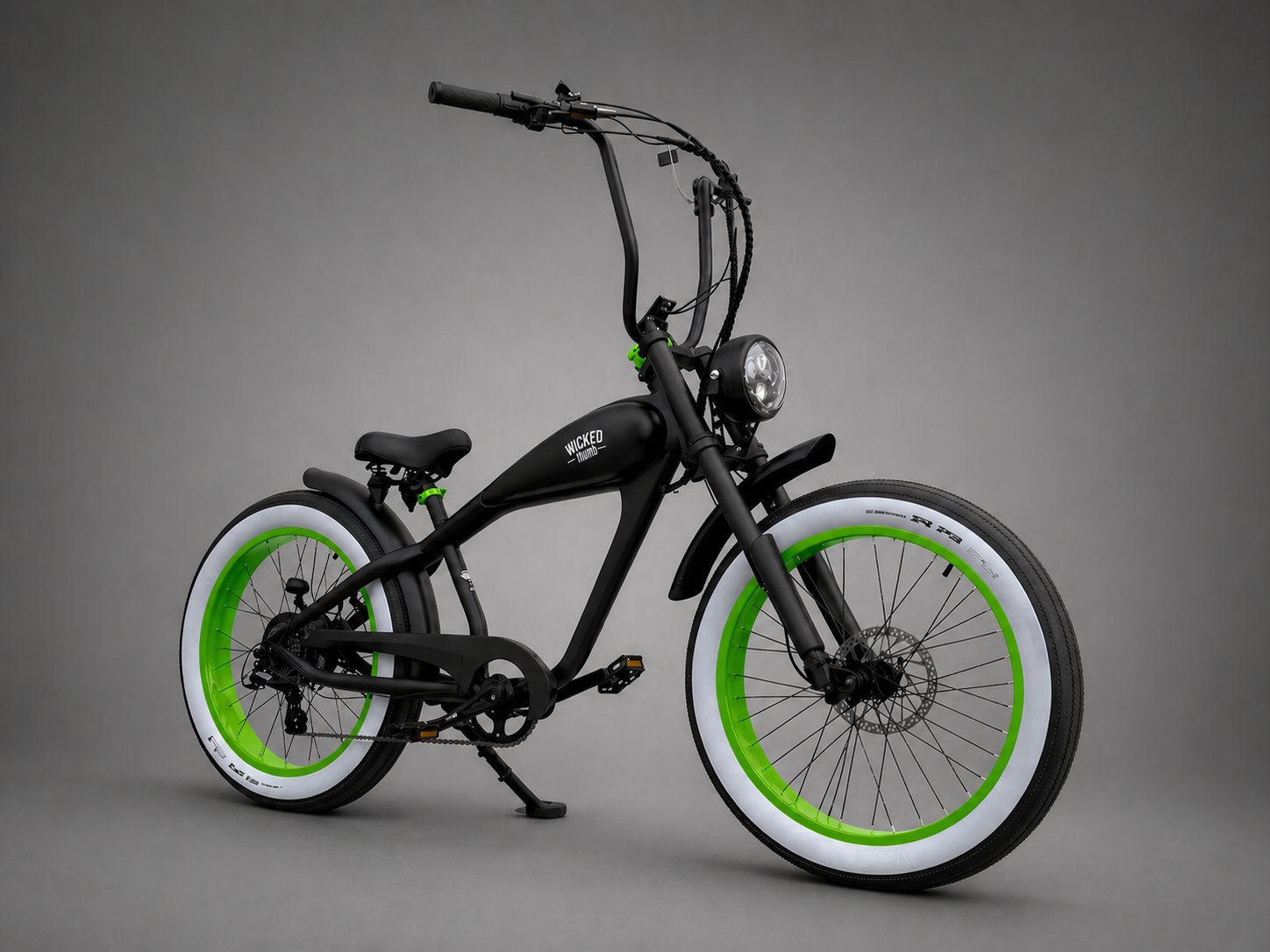

THE ORIGINAL ELECTRIC RAT ROD CHOPPER

We took this rat and upgraded the motor system to a 1200W nominal/ 2000W peak rear hub motor and put some sick electric green rims on it. Only making 4 of these. Get one before they’re gone.

SHIPS IN 10-14 DAYS

THE ORIGINAL ELECTRIC RAT ROD CHOPPER

We took this rat and upgraded the motor system to a 1200W nominal/ 2000W peak rear hub motor and put some sick electric green rims on it. Only making 4 of these. Get one before they’re gone.

7" Retro Ebike LED Headlight
7" Retro Ebike LED Headlight
$199.00
Smartphone Holder w/ mount
Smartphone Holder w/ mount
$69.00
BigAss Drink Holder Gen 2
BigAss Drink Holder Gen 2
$99.00
Mini Bar End Mirrors
$99.00

  • Top Speed > Class 3 28+MPH

    Range > 35-45 miles*
    *30+ miles of range at 25mph Throttle + Pedal Assist Operation

    Charge Time > 6 hours * 3A Charger Included

    Battery > 1040Wh (52V 20Ah) UL2271 / EN15194

    Motor > 750w nominal / 1500 w peak

    Throttle > Twist Throttle

    Gearing & Rear Derailleur > 7 Speed

  • TOTAL WEIGHT > 84 lbs

    BATTERY WEIGHT> 10 lbs

    MOTOR WEIGHT > 11.5 lbs

    FRAME SIZE > 19.75 in

    STANCE > 1.75” Seat Tube, 25.25” Reach, 27.25” Stand Over Height, 34” Minimum Saddle Height, 30.25” Width, 83” Length

  • BATTERY > 52V, 20 Ah (1040Wh) with Lithium NCA 21700 Samsung 50E cells, rated for 800 charge cycles

    HUB MOTOR > 750W  brushless geared rear hub motor - 120 Nm torque, 5:1 planetary gear reduction

    CONTROLLER > 52V, 30amp

    PEDAL ASSIST > Configurable 5-9 level pedal assist with sealed 12 magnet cadence sensor

    DISPLAY > C900E-USB 3.8” color LCD Display w/ USB Port

    CHARGER > 52V, 3 Amp WT intellicharger, 110v

    LIGHTS:

    Front > 6.5” LED headlight - 48V Hi/Lo Beam Function 300 lumens

    Rear > Dual Brake Light / Turn Signals

    RANGE > 35-45 miles per charge (estimate)* Read more

    THROTTLE > Right side twist throttle

    WIRING > Internally run, water resistant connectors and wiring harness

  • BATTERY MOUNT > Concealed top tube mount, Quick Lock and Release. Keyed Lock.

    BRAKE CALIPERS > Tektro HD-E3520 Hydraulic Disc

    BRAKE LEVERS > Aluminum alloy 3 finger blade levers with motor cutoff switch

    BRAKE PAD MATERIAL > Semi-Metallic

    BRAKE ROTORS > Tektro 203 mm front and rear

    CHAIN > KMC Z7

    CRANK SET > 46T, 170 mm ProWheel Pioneer forged alloy

    DERAILLEUR > 7-speed Shimano Altus

    FRAME > 6061 Aircraft Aluminum Fat Hydroformed Tube, with CNC machined top tube, Forged Dropouts

    FREEWHEEL > SunRace 12-28T, 7 speed

    FRONT END > Adjustable Air Suspension, Stretched Style, 135mm Hub Spacing, 10mm Threaded Axle with Nuts, 39mm Fork Tubes, Double Crown Direct Mount, Alloy, Turn Stopper Pin, Red Fork Caps

    GRIPS > Black Rubber Diamond Pattern with Black Alloy Locking Rings

    HANDLEBARS > 13.5" x 32" wide alloy ape hangers

    HEADSET > Threadless Internal Cups, Straight 1-1/8”

    KICKSTAND > Side-mounted, adjustable length

    PEDALS > VP-565 Alloy Platform, Black

    RIMS: > Alloy, Double Wall, 26” X 80mm Outer Width, 36 Hole, Red

    SADDLE > WT, Black Tuk Pattern, Faux Leather, Springs

    SEAT POST > Alloy, 30.4mm width, 300mm length

    SHIFTER DETAILS > Shimano SIS Index Trigger Thumb Shifter on Right, 7 speed

    SPOKES > Stainless Steel, 12 Gauge Black with Silver Nipples

    STEM > Red, Black Cap, Alloy 4 Bolt Pattern Front

    TIRES > 26” x 4.0”, 5-20PSI, Whitewall VeeTire ZigZag MPC

    TIRE TUBE > Schrader Valve
